On request, we can produce the perfect sleeving according to your wishes.
Braided sleeve – flexible & protective

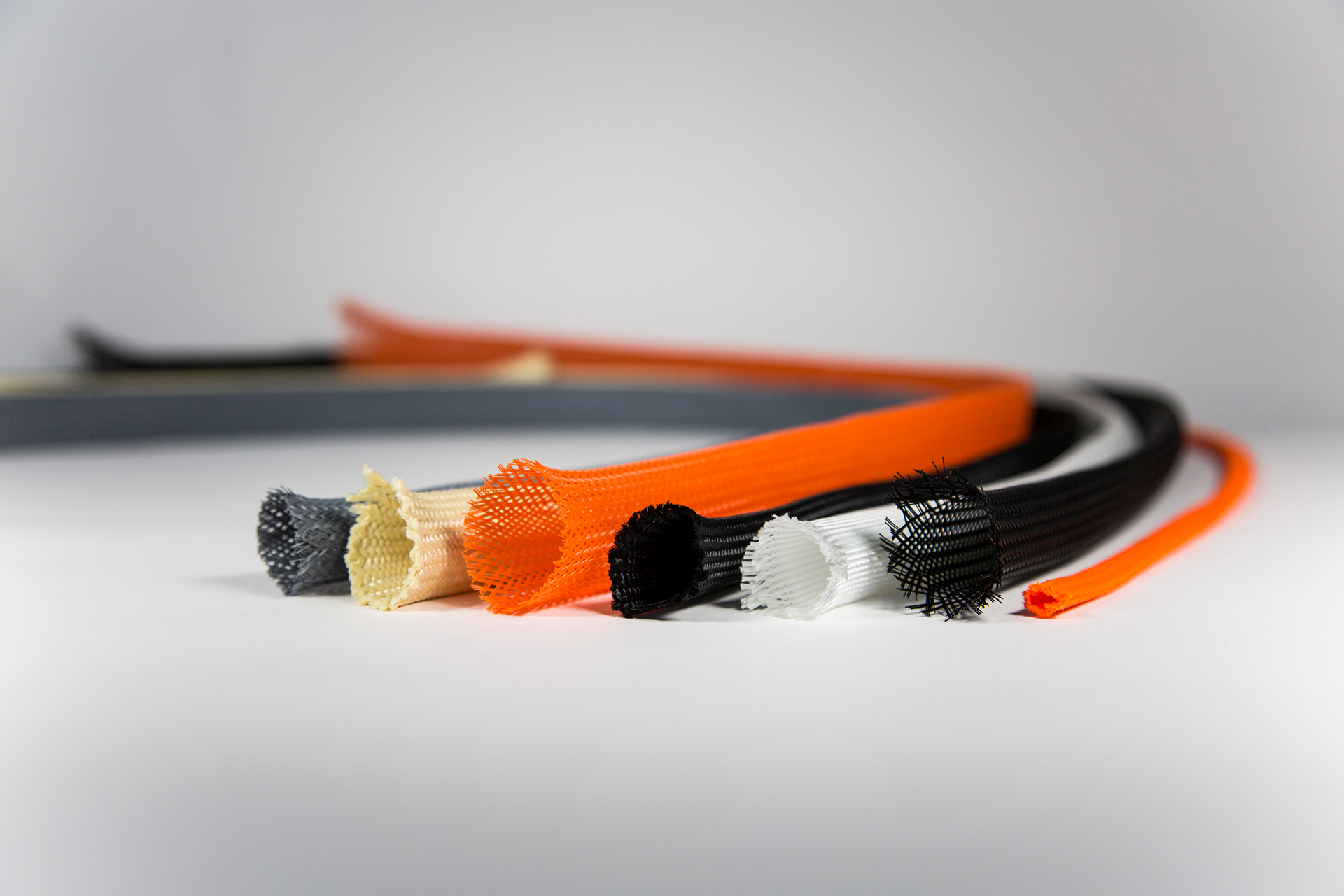

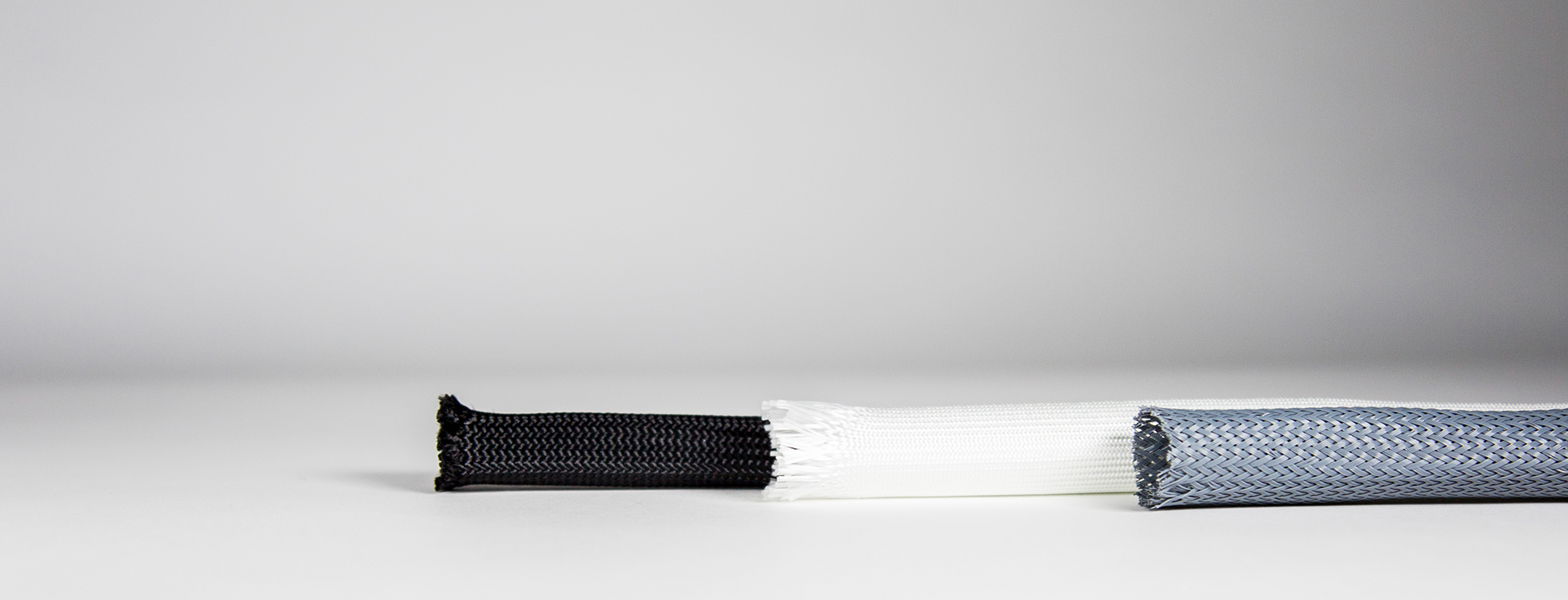

Klotz braided sleevings
As a manufacturer of textile braided sleeves of all kinds, we offer all standard dimensions. In addition, we work with you to develop custom-made braided sleeves tailored to your requirements. Your ideas shape our production. With over 50 years of experience in the manufacturing of braided sleeves we are your reliable partner for every need related to braided sleeves. Whether braided sleeves or overbraiding, up to a diameter of 200 mm!
Glass Fiber
Braided sleeves made of glass fibers are particularly suitable for high-temperature applications. They provide excellent heat protection while also offering electrical insulation.
Dimensions: from 0.3 mm, available in various wall thicknesses
Operating temperature: standard: 450 °C; quartz glass: 1,100 °C
Applications: areas with high thermal stress, in the electrical industry, and as a fiber-reinforced composite material.
Polyester Multifil
Braided sleeves made of polyester provide excellent mechanical protection for cables, hoses, and wires.
They are also used as overbraiding for pressure reinforcement.
Dimensions: from 0.5 mm, available in various wall thicknesses
Operating temperature: -50 °C to 120 °C
Applications: as overbraiding for pressure reinforcement, in the electrical industry, and in the automotive sector
Polyester Monofil
Braided sleeves made of polyester offer a wide range of applications and demonstrate maximum flexibility and versatility in use. Whether for protecting wiring harnesses, in rail transport, or in plant engineering.
Dimensions: from 2 to 200 mm
Operating temperature: -55 °C to 150 °C
Applications: cable protection sleeves in the automotive, robotics, mechanical engineering, and plant construction sectors. Surface protection for foamed insulation materials.
Aramid
Aramid braided sleeves are popular and versatile. They are primarily used in the electrical industry and the automotive sector.
Dimensions: from 2 mm
Operating temperature: up to 180 °C without loss of properties
Applications: as overbraiding for pressure reinforcement, in the electrical industry and cable manufacturing, in the automotive sector, as an asbestos substitute, and as a composite material.
Polyamid
Braided sleeves made of polyamide offer a wide range of applications and demonstrate maximum flexibility and versatility in use. Whether for protecting wiring harnesses, in rail transport, or in plant engineering.
Dimensions: from 2 to 200 mm
Operating temperature: -55 °C to 180 °C
Applications: areas with high mechanical stress as cable protection sleeves in the automotive, robotics, mechanical engineering, and plant construction sectors.
Glass Fiber Cords
Our glass fiber cord is available in various diameters from 0.6 mm to 9 mm and is ideally suited for a wide range of applications in industry and craftsmanship.
Thanks to its high heat resistance and durability, it is particularly robust and reliable.
Operating temperature: standard: 450 °C
Applications: areas with high thermal stress, in the electrical industry, and as a fiber-reinforced composite material.
A philosophy.
Textile braided sleeves – individual. reliable. made in Germany
Our philosophy is based on partnership-based cooperation and a deep understanding of our customers’ specific requirements. Every inquiry is considered individually, and every project is implemented in a solution-oriented way. Whether it involves special dimensions, materials, specific braiding structures, or an existing sample. We support you with experience and flexibility to precisely realize your ideas.
Quality from our own production in Germany, reliability in execution, and the ability to produce small series economically make us a strong partner. Our goal is not only to deliver a product, but to build long-term, trusting customer relationships with tailor-made solutions and on-time implementation.
Klotz braided sleevings
Flexibility in manufacturing
Our company, certified according to DIN EN ISO 9001, manufactures primarily glass fiber braided sleeves using modern braiding machines, starting from a diameter of 0.5 mm. In addition, we produce braided sleeves made from other fibers such as polyester and polyamide (monofilaments) for technical applications and as mechanical protection for cables and wires.
With a machine equipped with more than 200 spools, we are able to produce diameters of 200 mm and larger. Thanks to our wide range of machinery, we can also offer many different diameters, including intermediate sizes.
Glass fiber cords ranging from 0.8 mm to 9.0 mm in diameter complete our product range.
